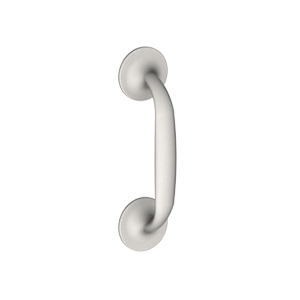

    7N

    7N
    UL Certified EPD: True
    Contact Hager for Price

    Specifications

    Box Quantity
    1
    Case Quantity
    12
    Certifications

    EPD. Meets ANSI A156.6 for J401 Pulls

    Clearance

    1-3/8"

    Door Thickness

    1-3/4" (45 mm)

    Fasteners

    Two 1/4" - 20 thru bolts with finish washers

    Finishes

    US3, US4, US10, US26, US26D, US28

    Material

    Aluminum, Brass, Bronze

    Notes

    Not suitable for back to back mounting

    Optional Features

    May be combined with a plate to make a pull plate

    Product Description

    Cast Pull

    Projection

    1-7/8" (47.6 mm)

    Pull Clearance
    1-3/8" (34.9 mm)
    Pull CTC
    5-1/2" (139.7 mm)
    Pull Diameter
    2" (51 mm)
    Pull Overall
    7-1/2" (190.5 mm)

    Template Files

      Name Download File type
    		7N Template T-7N-Rev01.pdf 14 KB
    		.pdf

    Instructions

      Name Download File type
    		I-TA01592 [RECOMMENDED SCREW CUT LENGTHS BY DOOR THICKNESS FOR TYPE 1 AND 3 PULLS] [-].pdf 102 KB
    		.pdf
