24Q

Contact Hager for Price

Case Quantity

Certifications

Clearance

1-3/4"

Door Thickness

1-3/4" (45 mm)

Fasteners

Type 7 mounting, standard. Two 5/16" diameter threaded studs, spanner collar, and spanner wrench

Finishes

US3, US4, US10, DBZ, US26, US19, US26D, US28, US32, US32D

Material

Aluminum, Brass, Bronze, Stainless Steel

Notes

Consists of two pulls back to back

Offset

3-3/4" (96 mm)

Options

For 45° offset, substitute "X" for first digit (i.e. X24Q)

Product Description

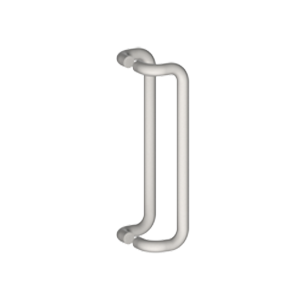

90° Round Offset Push/Pull Set

Projection

3" (76 mm)

Pull Clearance

1-3/4" (45 mm)

Pull CTC

18" (457 mm)

Pull Diameter

1-1/4" (32 mm)

	Name	Download	File type
	I-TA01592 [RECOMMENDED SCREW CUT LENGTHS BY DOOR THICKNESS FOR TYPE 1 AND 3 PULLS] [-].pdf	102 KB	.pdf
