11

Contact Hager for Price

Specifications

Applications

6” (152 mm) CTC- 11E
8” (203 mm) CTC- 11G
10” (254 mm) CTC- 11J
12” (305 mm) CTC- 11L

Case Quantity

Certifications

Meets ANSI A156.6 for J402 Pulls

Clearance

1-3/4"

Door Thickness

1-3/4" (45 mm)

Fasteners

Two 5/16" - 18 thru-bolts with washers

Finishes

US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D

Handicap

2-1/2" (64 mm) Clearance available on special order. Add prefix "H" to number (H11E, for example).

Material

Aluminum, Brass, Bronze, Stainless Steel

Notes

Back to back - see model 21

Offset

2-1/2" (64 mm)

Optional Features

For 45° offset, add prefix "X" to number (i.e., X11E). If ordered with tempered glass, specify glass thickness and hole size. Other centers, sizes and finishes available via special order.

Product Description

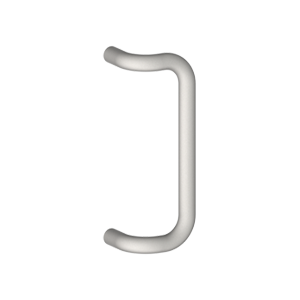

90° Offset Pull - Round

Projection

2-1/2" (64 mm)

Pull Clearance

1-3/4" (45 mm)

Pull Diameter

3/4" (19 mm)

Template Files

	Name	Download	File type
	11 Template t-11-11-template.pdf	200 KB	.pdf

Instructions

	Name	Download	File type
	I-TA01592 [RECOMMENDED SCREW CUT LENGTHS BY DOOR THICKNESS FOR TYPE 1 AND 3 PULLS] [-].pdf	102 KB	.pdf
	I-TA01347 [Pulls and Push & Pull Bar Sets - Type 5 Mounting] [-].pdf	227 KB	.pdf
