1

This product is not orderable through the eCommerce platform. Please contact customer service.

Contact Hager for Price

Applications

Box Quantity

Case Quantity

Certifications

Clearance

1- 1/2"

Door Thickness

1-3/4" (45 mm)

Fasteners

Two 1/4"- 20 thru bolts with finish washers

Finishes

US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D

Handicap

2-1/2" (64 mm) clearance available on special orders. Add prefix "H" to number (i.e. H1E)

Material

Aluminum, Brass, Bronze, Stainless Steel

Notes

Not suitable for BTB Mounting

Optional Features

May be combined with a plate to make a pull plate. Other centers available on special orders.

Product Description

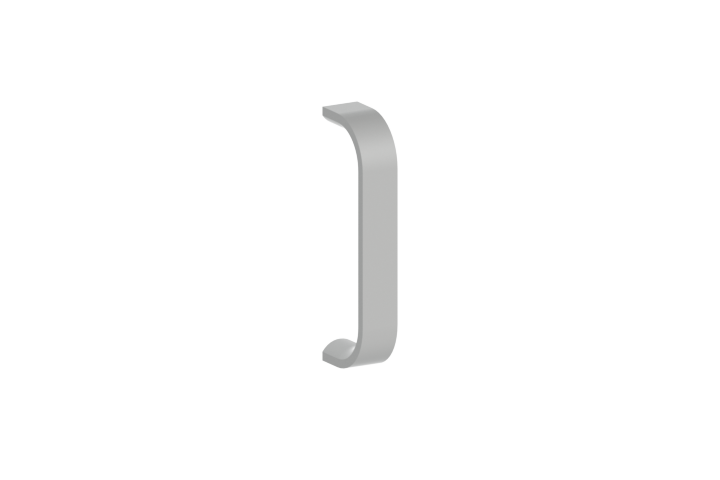

Modified Half Round Door Pull

Projection

2" (51 mm)

Pull Clearance

1-1/2" (38 mm)

Pull Diameter

1/2" x 1" (13 mm x 25 mm)

	Name	Download	File type
	1 Template t-1-1-template.pdf	199 KB	.pdf

	Name	Download	File type
	I-TA01592 [RECOMMENDED SCREW CUT LENGTHS BY DOOR THICKNESS FOR TYPE 1 AND 3 PULLS] [-].pdf	102 KB	.pdf
