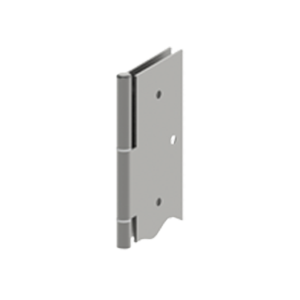

790-900

Contact Hager for Price

Specifications

Certifications

ANSI A156.26 Grade 1 for 150-pound doors, UL

Clearance

7/32" hinge side, Plus standard lockside clearance

Door Reinforcement

Wood - None required up to 200 lbs. For metal doors, a 1/8" (3 mm) thick reinforcement plate is recommended along the hinge edge for proper thread engagement of the adjustment studs.

Electric Modifications

Power Transfer Preparation (EPT 2) or (EPT 10), Exposed Electric Switches (E1S), Electric Through-Wire (ETW)

Fastener Size

#10-24 x 5/8" S/S Dril-Kwik® (metal frame), #10-16 x 1-1/4" S/S Type AB (wood door)

Finishes

US32D

Fire Rating

Up to 3 hr. metal and 90 min. wood composite

Frame Reinforcement

None required to 200 lbs. Heavier weight use 16-gauge channel.

Length

79", 83-1/8", 85", 95", 119"

Length Options

Standard and Custom

Material

14 Ga. (0.075") Type 304 Stainless Steel

Maximum Door Length

10'-0"

Maximum Door Thickness

1-3/4"

Maximum Door Weight

300 lbs

Notes

Any nonstandard length hinge may require a custom hole pattern based on the requested length. Consult Hager Companies to address the field prep for the doors and frames.
Hager Companies 790 Series Stainless Steel Continuous Higes are approved for ANSI A156.26 Grade 1 for 150 lb doors and Grade 2 for 300 lb doors.

Optional Features

Tamper Resistant Hospital Tips (HT), Sheared leaf, Raised Barrel (SWAGED), Wide Throw, Security Studs, Dutch Door Prep (DUTCH)

Product Description

Concealed Leaf, Door of Any Material

Special Features

Dual 6/6 Nylon bearings between each knuckle. May be used with beveled (non-hinge side) or square edge (hinge side) doors. 1/8" (3.2 mm) inset.

Template Files

Name	Download	File type
Model 790-900 Continuous Stainless Steel Hinge - 95" - Template 790-900-95-790-900-template.pdf	133 KB	.pdf
Model 790-900 Continuous Stainless Steel Hinge - 119" - Template 790-900-119-790-900-template.pdf	132 KB	.pdf
Model 790-900 Continuous Stainless Steel Hinge - 79" - Template 790-900-79-790-900-template.pdf	131 KB	.pdf
Model 790-900 Continuous Stainless Steel Hinge - 85" - Template 790-900-85-790-900-template.pdf	133 KB	.pdf
Model 790-900 Continuous Stainless Steel Hinge - 83" - Template 790-900-83-790-900-template.pdf	130 KB	.pdf

Instructions

Name	Download	File type
790-900_911_915 Installation Instructions - 75009400_1-21-08.pdf	444 KB	.pdf
ETW Installation Instructions for 790-900_790-915- I-CS00165-Rev05.pdf	313 KB	.pdf
E1S Installation Instructions for 790-900_790-915 - I-CS00166.pdf	282 KB	.pdf

Related Files

	Name	Download	File type
	SSCH_Elec_Mod_Rev5_v2a.pdf	300 KB	.pdf
	SSCH_HTO_v15.42a.pdf	150 KB	.pdf

Size Details

	Name	Download	File type
	Size Options - Hinge_SSCH_Conc_Size_Opt	107 KB	.pdf
