9436

Contact Hager for Price

Case Quantity

Door Specifications

Door weight 250 lbs, Door bottom 3/8" undercut

Door Thickness

Glass doors 3/8" to 1/2" thick, Wood doors 1-1/4" to 1-3/4" thick

Length

78" Standard, 96"

Material

304 stainless steel track and hangers with nylon coated rollers

Maximum Door Weight

250 lbs.

Notes

Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
Dimension from the top of the door to the top of the hardware = 3-13/16"

Product Description

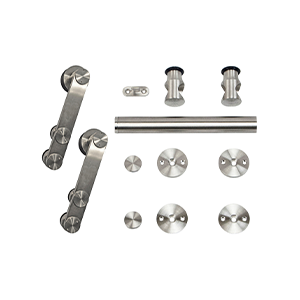

Face mount Strap Stick SS Round Rail

System Includes

Stainless steel track with two end caps, Hangers with wall brackets, One door bottom guide, Two track stops, Mounting and installation hardware

	Name	Download	File type
	9436-78 Face-Mount Strap Stick Installation Instructions I_SD00314-9436-78.pdf	2298 KB	.pdf
	I-SD00316.pdf	2779 KB	.pdf
