• Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation.
• Type: D02311-250
• ADA Compliant

For doors 1-3/8" - 1-3/4" (35 mm - 44 mm ) thick

• For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately)
• Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width

250 lbs. (113 kg)

Compares to: Stanley PDF250, Lawrence PF619

• See Related Files for additional information.
• Available in 102" (2591 mm) at an extended lead time. Please contact Hager customer service for additional details.

For 4'0" wide x 8'0" high doors, up to 250 lbs. (113 kg) per door.

See size option chart under Related Files

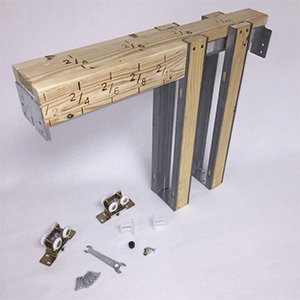

• Heavy-Duty, V-groove, jump-proof aluminum track
• Pre-assembled header assembly goes up quickly
• Easy door installation and removal for painting and repair
• 3 pair of wood split studs with wood inserts - size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height
• Steel encased for rigidity and to prevent fastener penetration into the pocket
• Track header unit attaches to rough framing at both ends
• Split studs can be nailed or screwed to track header
