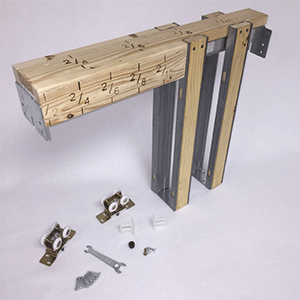

9628CS

Contact Hager for Price

Specifications

Case Quantity

Certifications

ADA Compliant

Conforms To

ANSI A156 14 (Grade 1), Type: D02311-150

Door Specifications

Up to 3'0" (914 mm) wide and 9'0" (2743mm)

Door Thickness

For doors 1-3/8" - 1-3/4" (35mm - 44mm) thick

Installation

For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately)
Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width. See Related Files for additional information.

Maximum Door Weight

150 lbs (68 kg)

Notes

For kit contents see Installation Instructions

Options

Soft Close mechanism (1-269-8651) is available, sold separately. See Related Files for additional information. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)

Specifications

V-groove jump-proof aluminum track
Pre-assembled header assembly goes up quickly
Easy door installation and removal for painting and repair 3/4" (19 mm) x 1-3/4" (44 mm)
Split Studs Split Studs are steel encased wood for rigidity and to prevevent fastener penetration into the pocket
Header assembly attaches to rough-in framing at both ends
Split studs can be nailed or screwed to the Header Assembly

Instructions

	Name	Download	File type
	I-SD00396 [9628CS- 9629CS- 9630CS & 9631CS] [2 x 4 150lb Pocket Door Kits] [4].pdf	697 KB	.pdf

Related Files

Name	Download	File type
1-269-8651 Pocket Door Soft Close Mechanism Kit Installation Instructions - I-SD00397-Rev01.pdf	293 KB	.pdf
3628CS_9629CS_9630CS_9631CS_9850HD_9852HD Mullion Converging Kit - I-SD00402.pdf	233 KB	.pdf
9628CS_9629CS_9630CS_9631CS 1.75in Adapter - I-SD00403-Rev01.pdf	202 KB	.pdf
9805_9806 4-Wh Hanger Parts Bag for 9628CS_9629CS_9631CS_9850HD_9852HD - I-SD00431-Rev01.pdf	422 KB	.pdf
