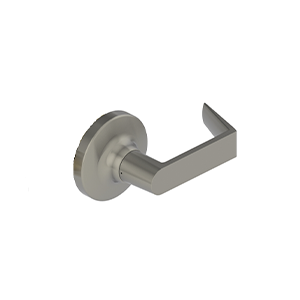

    3417 - SINGLE DUMMY

    3417
    ADA Compliant: True
    BHMA Certified: True
    Hager Lifetime Warranty: True
    Contact Hager for Price

    Specifications

    Applications
    • Extra Heavy Duty Commercial
    • Industrial
    • Institution
    Certifications

    ADA Compliant ANSI A117.1 Accessibility Code

    Door Thickness

    1-3/8" - 2" (35 mm - 51 mm)

    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    Finishes
    • US3, US4, US10B, US26, US26D and BLK
    • Anti-Microbial Coating (US26D finish only)
    Functions

    Single Dummy

    Lever Options

    Archer, August and Withnell

    Notes
    • No exposed mounting screws
    • Non-handed
    Rose Diameter
    3-17/32" (90 mm)
    Warranty

    Lifetime

    Instructions

      Name Download File type
    		3417 Installation Instructions - 3417.pdf 55 KB
    		.pdf

    Related Files

      Name Download File type
    		Hager EPD - Cylindrical Locks 2500, 3400, 3500 105.1 477 KB
    		.pdf
    		How to Order LOCKS 3400_HTO - LS_3400_HTO_v15.42.pdf 1896 KB
    		.pdf
