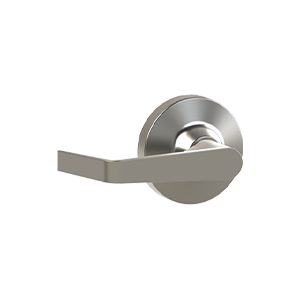

47KP - KEY-IN-LEVER PASSAGE

47KP

Contact Hager for Price

Certifications

Complies with ANSI A117.1 for accessible buildings and facilities (levers only)

Door Thickness

1-3/4" (45mm)

Finishes

ALM, DBZ, US3, US32D, BLK

Functions

14 - Entrance by trim when latch bolt is released by lever; always active; no cylinder

Lever Options

Archer, August, Withnell

Notes

4700 have steel bodies and zinc handles. The exception being US32D which has a stainless steel rose.

Projection

3-1/16" (78 mm) for Archer, 3-3/16" (80 mm) for August, 3-1/16 (78 mm) for Withnell

Rose Diameter

3-3/8" (86 mm)

Standard Door Prep

Warranty

Five-years

	Name	Download	File type
	4700 Series Key-in-Lever Trim Template - T-ED00332-Rev01.pdf	83 KB	.pdf

	Name	Download	File type
	4703 Series Key-in-Lever Trim Installation Instructions - I-ED00331.pdf	2248 KB	.pdf

	Name	Download	File type
	4703 Series Key-in-Lever Drawing - 4700_Key_in_Lever.pdf	298 KB	.pdf
	How to Order EXITS 4700 - ED_4700_HTO_v15.42.pdf	701 KB	.pdf
