• 2-3/4" (70 mm) - standard frame and door (161 or Turtle Prep)
• Exit device dependent

Complies with ANSI A117.1 for accessible buildings and facilities (levers only)

1-3/4" (45 mm)

ALM, DBZ, US3, US32D, BLK

02 - Entrance by trim when actuating bar is locked down

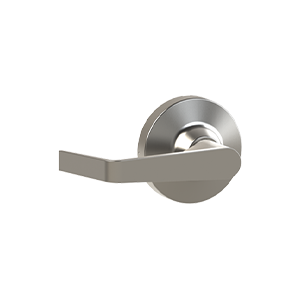

Archer, August, Withnell

4700 have steel bodies and zinc handles. The exception being US32D which has a stainless steel rose.

Archer - 3-1/16" (78 mm), August - 3-3/16" (80 mm), Withnell - 3-1/16 (78 mm

• 2-1/8" (54 mm) diameter (cross bore),
• Turtle Prep compatible ANSI A156.115

Five-years
