4201S

Contact Hager for Price

Accessories

Applications

For use on single or double door openings requiring panic devices

Box Quantity

Case Quantity

Certifications

Fasteners

Finishes

US32D, ALM

Handing

Non-handed

Material

Stainless Steel (US32D device). Steel (ALM device).

Maximum Door Thickness

50mm (114mm Minimum Style Width)

Maximum Door Width

762mm - 1220mm Single Door. 1524mm - 2440mm Double Door.

Maximum Opening

Maximum Door Height: 2134mm Standard; 2438mm Optional

Notes

Hager Euroline products are not ANSI certified.

Product Description

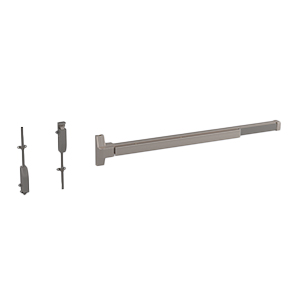

4200 Series Euro Push Bar Surface Vertical Rod Exit Device

Projection

63mm

Warranty

3-Year

	Name	Download	File type
	4200 Series SVR Installation Template t-ed01672.pdf	215 KB	.pdf

	Name	Download	File type
	I-ED01626.pdf	1492 KB	.pdf

Name	Download	File type
4201 CE Certification - 4200_CE_Cert.pdf	129 KB	.pdf
CE Declaration of Performance - 4200_CE_Dec_Perf.pdf	493 KB	.pdf
4200 Series SVR Double Door Strike Dimensions s-ed01678.pdf	825 KB	.pdf
4200 Series SVR Rod Guide Dimensions s-ed01600.pdf	265 KB	.pdf
4200 Series SVR Bottom Strike Dimensions s-ed01594.pdf	699 KB	.pdf
4200 Series SVR Top Strike Dimensions s-ed01588.pdf	855 KB	.pdf
S-ED01675.pdf	344 KB	.pdf
