    UDETAIL2427
    Alt_1

    4201R

    4201R
    Contact Hager for Price

    Specifications

    Accessories
    • 42CE - Cylinder Escutcheon Trim w/ William Lever
    • 42KE - Key-in-Lever Trim w/ Withnell Lever
    • 2-649-5011 Double Door Strike
    Applications
    • Single door opening requiring panic device.
    • Primary opening leaf on double door openings requiring panic devices.
    Box Quantity
    1
    Case Quantity
    4
    Certifications
    • EN1125 (3:7:6:B:1:4:2:2:B:A)
    • Fire Rated (60m Wood Door)
    Fasteners
    • Wood and machine screws
    • Thru-bolts
    Finishes

    US32D, ALM

    Handing
    Non-handed
    Material

    Stainless Steel (US32D device) , Steel (ALM device)

    Maximum Door Thickness

    50mm (114mm Minimum Style Width)

    Maximum Door Width

    762mm - 1220mm Single Door. 1524mm - 2440mm Double Door

    Notes

    Hager Euroline products are not ANSI certified.

    Product Description

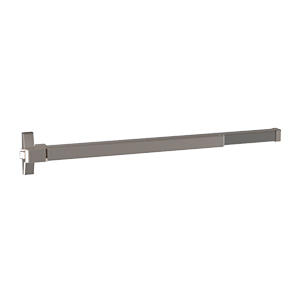

    4200 Series Euro Push Bar Rim Exit Device

    Projection

    63mm

    Warranty

    3-Year

    Template Files

      Name Download File type
    		4200 Series Rim Installation Template t-ed01671.pdf 174 KB
    		.pdf

    Instructions

      Name Download File type
    		I-ED01625.pdf 1214 KB
    		.pdf

    Related Files

      Name Download File type
    		4200 CE Certification - 4200_CE_Cert.pdf 129 KB
    		.pdf
    		CE Declaration of Performance - 4200_CE_Dec_Perf.pdf 493 KB
    		.pdf
    		4200 Series Rim Strike Dimensions s-ed01677.pdf 940 KB
    		.pdf
    		S-ED01674.pdf 446 KB
    		.pdf
