• BUZZ - buzzer 12/24 VDC (2-679-0028)
• RECT - rectifier for AC operation (2-679-0029)

• Grade 1 Heavy-Duty Electric Strike
• Designed for installation in hollow metal frames with Grade 1 cylindrical and mortise locksets with up to 3/4” (19 mm) throw latch bolts and 1" deadbolts (25 mm)
• For use on fire-rated and non-fire-rated doors (fail-safe is not permitted on fire-rated doors)
• New construction and retrofit applications
• Rated for interior use only

• ANSI A156.31 compliant, Grade 1
• UL - 1034 Burglary Resistant (interior use application)
• BP - 10254
• IL10C.3H Fire-Rated, 4’ x 8’ door
• NFPA 252
• CAN 4-5104 (Fail Secure Only)
• UL tested 1,500 lbs. (Factory tested 2,500 lbs.)

• 600/300 @ 12/24V DC - Solenoid
• SPDT, 3A @ 30VDC - LBM (Optional)
• SPDT, 3A @ 30VDC - DSM (Optional)
• SPDT, 3A @ 30VDC - DBM (Optional)

• Retrofits existing ANSI 4-7/8” (124 mm) strike prep - no centerline relocation
• Internally mounted solenoid, no heat in keeper
• Non-handed
• Fail secure standard; field reversible to fail-safe
• Field selectable voltage - 12/24V, AC/DC
• Plug-in connectors
• Fail secure standard; field reversible to fail-safe
• 1/8” (3 mm) horizontal alignment adjustment
• 70 ft-lb dynamic strength
• Tamper-resistant

• US4 Satin Brass
• US10B Dark Bronze
• US26 Bright Chrominum
• US26D Satin Chrome
• US32D Satin Stainless Steel

All stainless steel parts with durable diecast body for corrosion resistance.

• Not to be installed in an inactive door leaf
• Hager recommends using a power regulator with the 2930 Series strikes

• Non-handed
• LH (required for mortise lock w/deadbolt)
• RH (required for mortise lock w/deadbolt)

• Latch Bolt Monitor (LBM) - Door closed/latched or open/unlatched status & Access control anti-tailgate/timer reset signal
• Door Secure Monitor (DSM) - Door secure and unlocked monitoring & Mantraps, interlocks, airlocks
• Deadbolt Monitoring (DBM (Handed) - Signals deadbolt projected or retracted & Occupied signal rooms/bathrooms & Manual lockout of access control by deadbolt

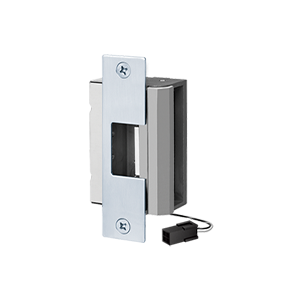

Electric Strike - Mortise lock w/ Deadbolt, Dual Voltage 12/24VDC, ANSI/BHMA A156.31 Grade 1, UL Listed 3-hour fire rated, Non-handed

1 Year
