    750-134 (Discontinued)

    750-134
    Hager Lifetime Warranty: True
    UL Certified EPD: True
    Contact Hager for Price

    Specifications

    Applications
    • Door edge protection lip.
    • Offset joint to clear casing.
    • Frame leaf alignment rib for proper hinge location
    Clearance
    • 5/16" (8 mm) hinge side
    • Plus standard lockside clearance
    • Refer to Door and Frame Dimensioning in the General Information section for further details
    Door Reinforcement
    None required
    Fasteners
    • Standard: Dril-Kwik® – #12-14 x 1-1/2" Flat Head Sheet Metal Screws
    • Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
    • Additional Options Available upon request
    Features
    • For medium frequency, 1-3/4" (44 mm) thick solid core wood interior doors up to 100 pounds
    • Door edge protection lip
    • Offset joint to clear casing
    • Frame leaf alignment rib for proper hinge location
    Finishes

    CLR

    Frame Reinforcement
    None required
    Length

    79", 83", 85", 95", 119"

    Length Options

    Standard and Custom

    Material

    Aluminum 6063-T6

    Notes

    EPD: Roton Continuous Hinges Environmental Product Declaration

    Options

    TIPIT® (see Roton accessories)

    Product Description

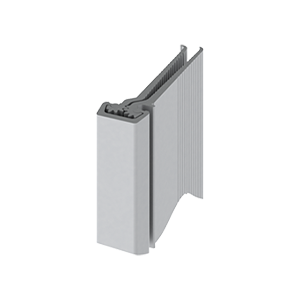

    Concealed LeafWith Half Drill Quick and Half Wood fasteners1-3/4" Interior Wood Door

    Warranty

    All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
