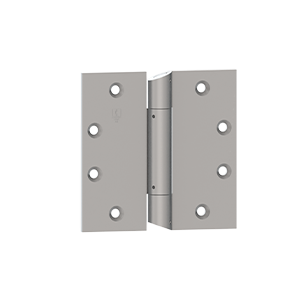

IHTAB750 3-Knuckle

IHTAB750

Contact Hager for Price

Applications

For use on heavy weight doors ranging from 200-300 lbs.

Box Quantity

Case Quantity

Certifications

ANSI A8111

Electric Modifications

Electric monitor (EMN), Electric through wire (ETW), Electric through wire and monitor (ETM)

Features

Concealed maintenance free bearings. Welded hospital tips and plug. Welded knuckles.

Finishes

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Material

Steel with Stainless Steel pin

Notes

Options

Product Description

Full Mortise, Concealed Anti-Friction Bearing, Heavy Weight

Width

See Sizing Chart Options

Name	Download	File type
Full Mortise Template - T311.pdf	416 KB	.pdf
EMN - 127mm - Template - T525M.pdf	242 KB	.pdf
EMN - 5in - Template - T-525.pdf	235 KB	.pdf
EMN - 4-1/2in - Template - T-520.pdf	246 KB	.pdf
ETM - 114 mm - Template - T-524M.pdf	254 KB	.pdf
ETM - 4 1/2in - Template - T-524.pdf	252 KB	.pdf
ETW - 127mm Template Metric - T527M.pdf	252 KB	.pdf
ETW - 5in Template - T527.pdf	250 KB	.pdf
ETW - 114mm - Template t522m-template.pdf	101 KB	.pdf
ETW - 4 1/2in x 4in and 4 1/2in x 4 1/2in Template - T522.pdf	42 KB	.pdf
Full Mortise Template - T315M.pdf	365 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316M-Rev02.pdf	74 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316-Rev02.pdf	67 KB	.pdf
Full Mortise Template - T315.pdf	363 KB	.pdf
Full Mortise Template - T311M.pdf	367 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312M-Rev02.pdf	73 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312-Rev02.pdf	68 KB	.pdf
T560 ETW HVY_WT_RSS 45 X 45 750 850 REV 9.pdf	96 KB	.pdf
T560M ETW HVY_WT_RSS 45 x 45 750 850 metric REV 8.pdf	97 KB	.pdf

	Name	Download	File type
	Size Options Commercial Hinge_Detention Hinges_SizeOptions 2.pdf	117 KB	.pdf
